Indirect Fired Hot Air Generator

Indirect Fired Hot Air Generator

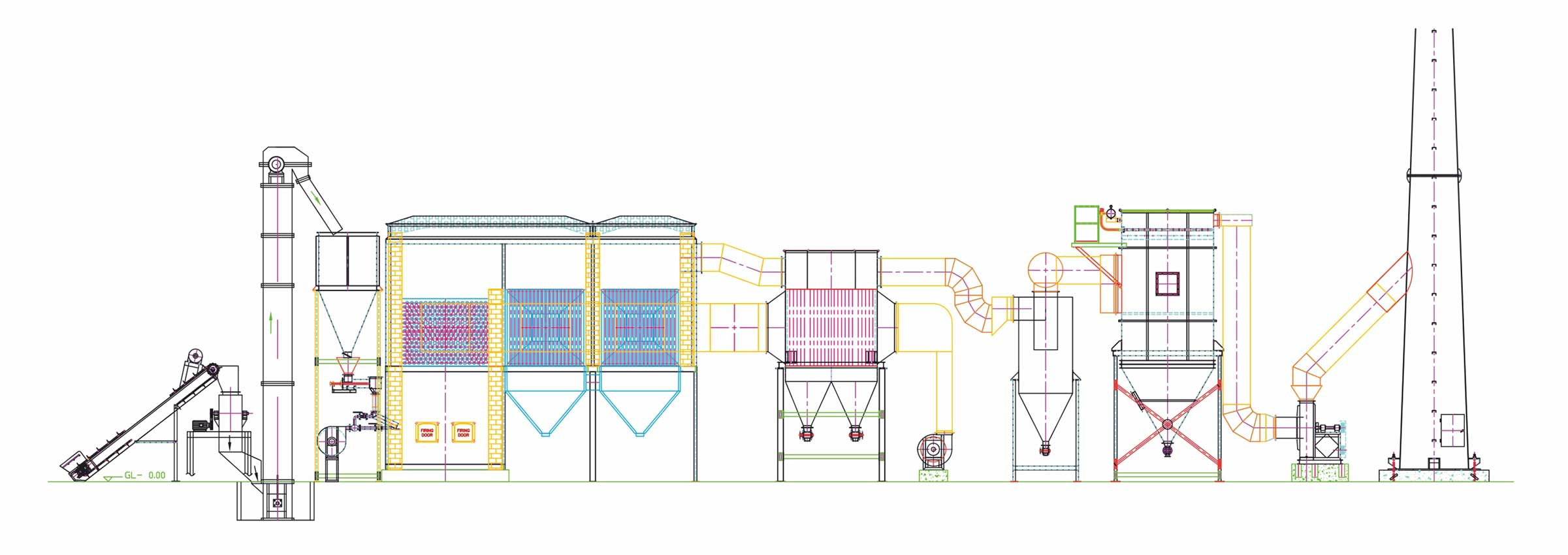

The (FBC) Fluidized Bed Combustion fired HAG system consist of a Radiative Heat Exchanger / Convective Heat Exchanger / HRU unit / Air Pollution Equipment. With fluidized bed combustion furnace and controlled Fans.

Where the cold air fed in to the Heat Recovery Unit (HRU) through C. A. Fan, gradually is heated and passes to Convective Heat Exchanger and then Radiative Heat Exchanger to final process.

As we consider the flue gas path, flue gas passes from furnace to Radiative Heat Exchanger to Convective Heat Exchanger than HRU unit to Air pollution equipment to I.D. Fan and Chimney.
